UltraCut Mower Decks

Exmark UltraCut 72 Inch Zero-Turn Mower Deck

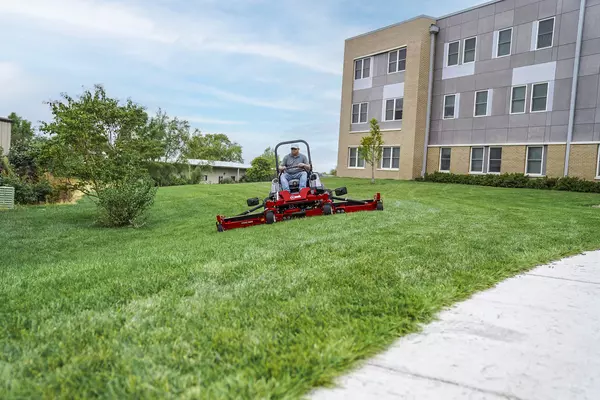

At Exmark, we're constantly working to perfect our cutting decks because it doesn't matter how much experience you have, if the cut doesn't look good, your business is done. We've left no stone unturned in the quest for the ultimate cut quality. Flow-control baffles accelerate airflow under the deck, so clippings move easily and discharge evenly. We've optimized blade-tip speed to deliver uniform clipping discharge distance and uniformity. Our rear discharge zero-turn mowers offer enhanced clipping control, with the ability to trim on both sides of the deck. And our new UltraCut Flex Wing cutting decks - available in 96-inch and 144-inch on Lazer Z zero-turn mowers – enable you to mow up to 11.5 acres per hour without compromising cut quality or appearance.

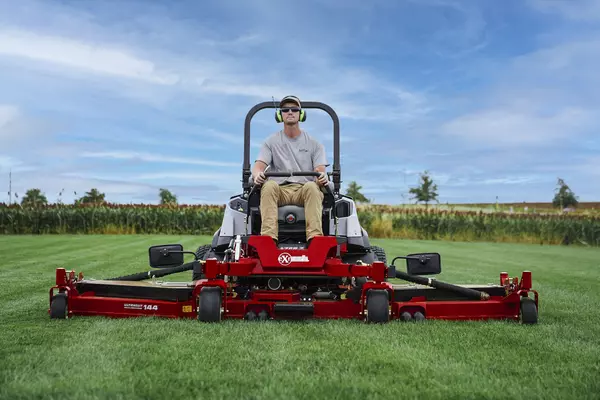

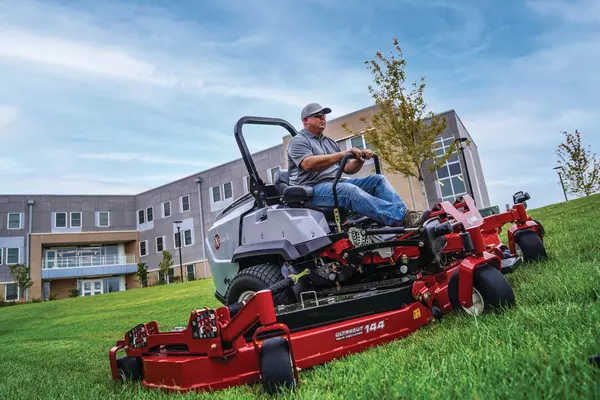

Standard on 144" Lazer Z Models.
  • 5.5" deck depth. 8-point suspension. Full-floating.
  • No maintenance, sealed spindles. 7Zero-maintenance sealed spindles. 7.75-inch diameter cutter housings with 25mm (.98-inch) diameter spindle shafts and splined blade drivers. Maintenance free double-row ball bearings.
  • • Six matching blades – same part number as 72-inch UltraCut cutting decks.
  • Patented spherical bearing design on idler arms requires only annual greasing.
  • Coned anti-scalp rollers feature a through-axle design for maximum durability.
  • Wings flex 20-degrees up and 15-degrees down.

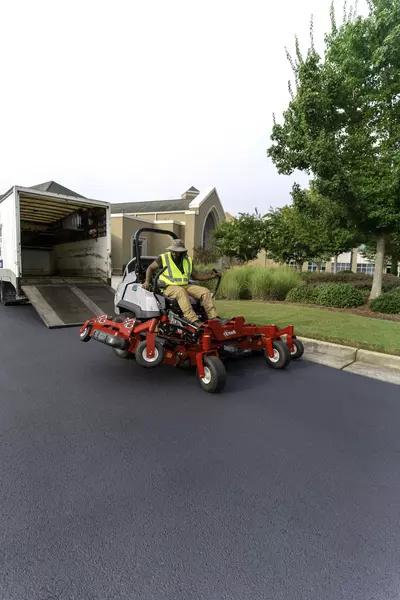

  • Wings fold hydraulically for easy transport and trailering. 83-inch width (with wings folded) fits between the wheel wells of many industry-standard trailers.

Standard on 96" Lazer Z Models.
  • 5.5" deck depth. 8-point suspension. Full-floating.
  • No maintenance, sealed spindles. 7.75" diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver, no maintenance, double-rowed ball bearings.
  • 4 matching blades.
  • Patented spherical bearing design on idler arms requires only annual greasing.
  • 13 coned anti-scalp rollers with a through-axle for increased durability.
  • Wings flex 20-degrees up and 15-degrees down.

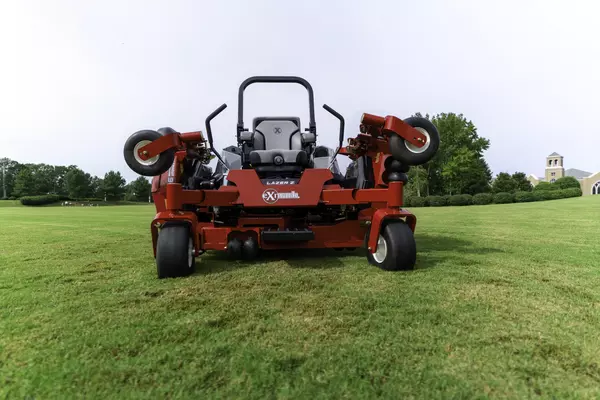

  • Wings fold-up for easy transport and trailering, for a reduced total width of 74".

Standard on Lazer Z® X-Series Models.
  • 5.5" deck depth. 4-point suspension. Full-floating.
  • No maintenance, sealed spindles. 7.75"-diameter cast aluminum cutter housing with 1.75"-diameter splined blade driver and 30mm (1.18" ) diameter spindle shaft.
  • No-maintenance, double-rowed, dual triple lip seal, high-speed ball bearing assemblies.
  • Patented spherical bearing design on idler arm pivots requires only annual greasing.
  • Coned anti-scalp rollers.
  • (3) 7-gauge steel reinforcement rings at spindle mounting area on 60" & 72."
  • Patented tool-less removable, high-strength polymer belt covers.
  • 10-gauge steel top.
  • 7-gauge steel side skirt.
  • Heavy-duty trim side wear guard.
  • 18,500 fpm blade tip speed.
  • Exclusive flow-control baffles.
  • Flexible discharge chute reduces impact damage of trees and other obstacles.

Optional on Lazer Z Diesel and S-Series and Radius S-Series Rear Discharge Models.
  • 5.5" deck depth. 4-point suspension. Full-floating.
  • 7-gauge high-strength low alloy deck construction. Top plate on Radius S-Series is 10-gauge.
  • High-strength patented polymer belt covers.
  • Reinforced anti-scalp rollers.
  • Compression molded UHMW side bumper protects deck and follows ground contours.
  • Lazer Z S-Series and Diesel: No maintenance spindles are sealed. 7.75" diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver, no maintenance, sealed ball bearings.
  • 18,500 fpm blade tip speed.
  • Patented spherical bearing design on idler arms requires only annual greasing.
  • Patented "V" shaped flow deflector baffles.

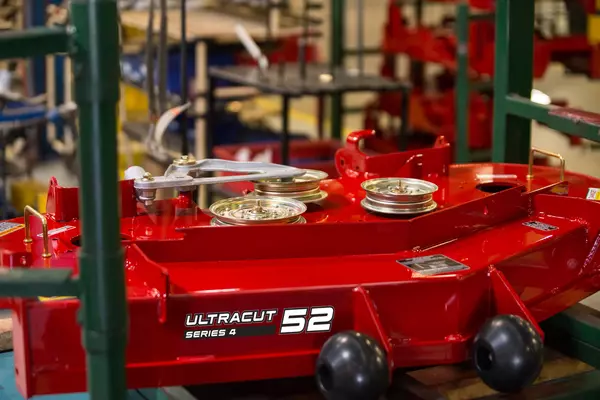

Standard on Lazer Z E- & S-Series, Radius X-Series, Turf Tracer X-Series and Staris S-Series 48," 52" & 60" models.
  • 5.5" deck depth. 4-point suspension. Full-floating.
  • 10-gauge steel top.
  • 7-gauge steel side skirt.
  • (3) 7-gauge steel reinforcement rings at spindle mounting area excludes 48" & 52" models.
  • Heavy-duty trim side wear guard excludes 48" models.
  • No maintenance spindles are sealed. 7.75" diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver, no maintenance, sealed ball bearings.
  • 18,500 fpm blade tip speed.
  • Exclusive flow-control baffles.
  • Patented spherical bearing design on idler arms requires only annual greasing excludes Radius X-Series.
  • Patented tool-less removable, high-strength polymer belt covers.
  • Flexible discharge chute reduces impact damage of trees and other obstacles.

Standard on Radius® E- & S-Series, Staris® E-Series, Turf Tracer® S-Series, Viking® 48" and Metro® 48" models.
  • 5.0" deck depth. 4-point suspension. Full-floating (excludes Viking and Metro models).
  • 10-gauge steel top.
  • 7-gauge steel side skirt.
  • Viking, Metro, and Radius E- & S-Series 60" models: 7-gauge steel reinforcement rings at spindle mounting.
  • Turf Tracer S-Series and Staris E-Series: 7.75" diameter cutter housing with 1.75" diameter splined blade driver and 25mm (.98") diameter spindle shaft, no maintenance, sealed ball bearings.
  • Viking 48" and Metro 48": 5.40" diameter cutter housing and 1.0" diameter spindle tube, no maintenance, sealed ball bearings.
  • 18,500 fpm blade tip speed.
  • Exclusive flow-control baffles.
  • Patented tool-less removable, high-strength polymer belt covers (excludes Viking and Metro models).
  • Flexible discharge chute reduces impact damage of trees and other obstacles.
  • Up to 5 anti-scalp rollers.

Standard on Viking® 36" and Metro®32" & 36" models.
  • 5.0" deck depth. Fixed.
  • 10-gauge steel top with 7-gauge reinforcement rings at spindle mounting area.
  • 7-gauge steel side skirt.
  • 5.40" diameter cutter housing and 1.0" diameter spindle tube, no maintenance, sealed ball bearings.
  • 18,500 fpm blade tip speed.
  • Exclusive flow-control baffles.
  • Flexible discharge chute reduces impact damage of trees and other obstacles.

Series 1 Stamped Deck Features. Standard on Quest E-Series.
  • Only available in California.
  • 4.0" deck depth. 3-point suspension. Floating.
  • 13-gauge stamped steel.
  • Rolled deck edges for additional strength.
  • 5.50" diameter cutter housing with 17mm diameter spindle shaft. Sealed, greaseless spindle bearings require no maintenance year-round.
  • 18,500 fpm blade tip speed.
  • Composite discharge chute reduces impact damage of trees and other obstacles.
  • Round anti-scalp rollers.
Series 2 Fabricated Deck Features. Standard on Quest S-Series.
  • 4.0" deck depth. 3-point suspension. Floating.
  • 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded front bumper.
  • 5.50" diameter cutter housing with 17mm diameter spindle shaft. Sealed, greaseless spindle bearings require no maintenance year-round.
  • 18,500 fpm blade tip speed.
  • Composite discharge chute reduces impact damage of trees and other obstacles.
  • Round anti-scalp rollers.
