Exmark Lawn Mower SpindlesCutting System: Spindles

Exmark's cutting spindles are the superheroes of spindles. Their superpowers lie in their simplicity and durability. Made from tough cast aluminum that houses sealed ball bearings, they can withstand the effects of impact and moisture. They’re also maintenance-free—yet another superpower.

Standard on Lazer Z® DS- and X-Series.

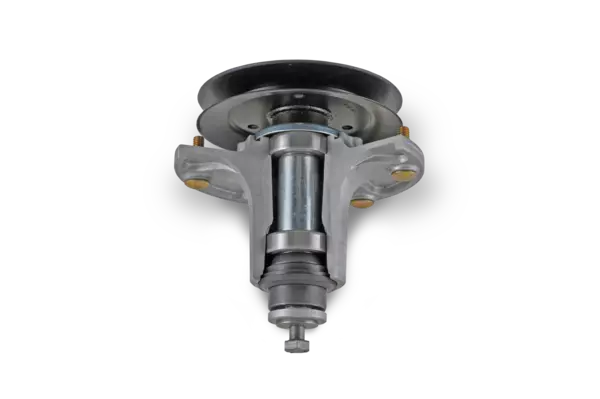

  1. 7.75"-diameter cast aluminum spindle housing.
  2. Double-rowed, dual triple lip seal, high-speed ball bearing assemblies, non-greasable.
  3. 30 mm spindle shaft diameter at bearing.
  4. Splined blade driver eliminates self tightening from impacts.
  5. Spindle nut minimizes moisture from entering the spindle internals, retains bearing clamp load when servicing drive pulley.
  6. Completely serviceable.
Standard on Turf Tracer® S- & X-Series, Viking™ and Metro® models.
  1. 5.40"-diameter cast aluminum spindle housing.
  2. Dual-sealed, high-speed bearing assemblies, non-greasable.
  3. 1.0" spindle shaft diameter at bearing.
  4. Splined blade drive eliminates self tightening from impacts excludes Viking and Metro models.
  5. Spindle cap minimizes moisture from entering the spindle internals.
  6. Spindle cavity is filled with grease to reduce condensation and moisture ingestion.
Standard on Lazer Z® E- & S-Series, Pioneer® S-Series and Vantage® models.
  1. 7.75"-diameter cast aluminum spindle housing.
  2. Dual-sealed, high-speed bearing assemblies, non-greasable.
  3. 25 mm spindle shaft diameter at bearing.
  4. Splined blade driver eliminates self tightening from impacts.
  5. Spindle cap minimizes moisture from entering the spindle internals.
  6. Spindle cavity is vented to reduce condensation and moisture ingestion.
Standard on Lazer Z® DS- and X-Series.
  1. 7.75"-diameter cast aluminum spindle housing.
  2. Double-rowed, dual triple lip seal, high-speed ball bearing assemblies, non-greasable.
  3. 30 mm spindle shaft diameter at bearing.
  4. Splined blade driver eliminates self tightening from impacts.
  5. Spindle nut minimizes moisture from entering the spindle internals, retains bearing clamp load when servicing drive pulley.
  6. Completely serviceable.
