Exmark Advantage: Cutting Systems
January 24, 2016
The true test of any mower deck is the quality of cut it delivers. Landscape professionals depend on it. Homeowners thrive on it. And our reputation rides on it. That’s why we’re constantly improving our cutting decks with the goal of perfection in-mind.
Exmark cutting systems are designed to work as a unit, with each part contributing to its performance and overall durability. Patented flow-control baffles accelerate airflow under the deck, working with the blades to facilitate easy movement of materials and an even, controlled discharge.
Today, we’ll examine two of Exmark’s best cutting systems: the UltraCut Series 6 side-discharge and the UltraCut Rear Discharge.

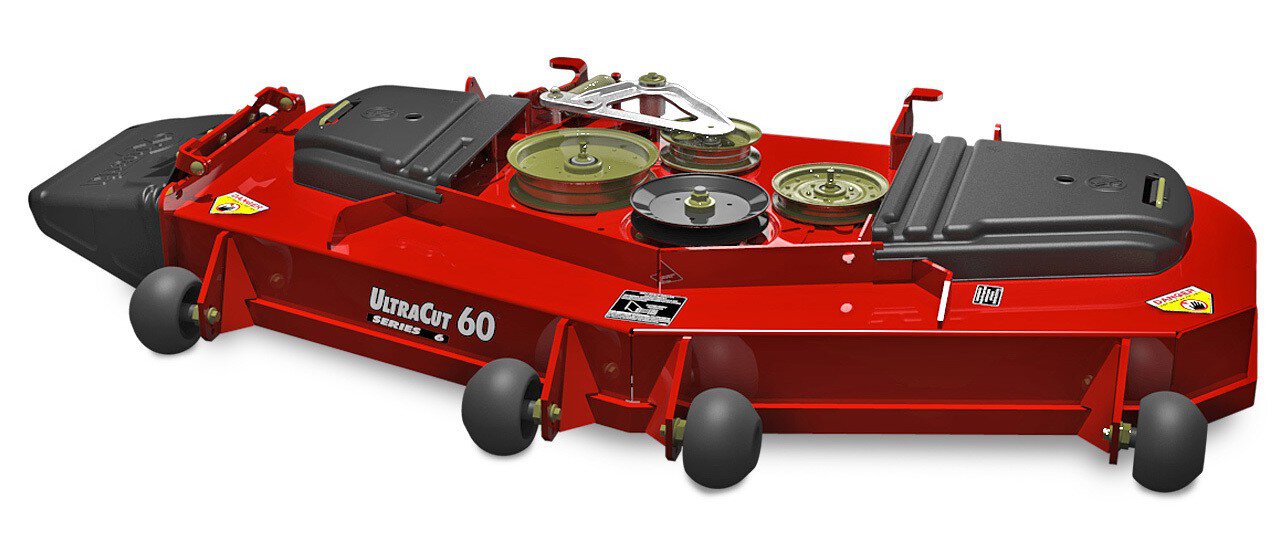

UltraCut Series 6 Cutting System
- 5.5″ deck depth. 4-point suspension. Full-floating.
- No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 1.75″-diameter splined blade driver and 30mm (1.18″ ) diameter spindle shaft.
- Patented spherical bearing design on idler arm pivots requires only annual greasing.
- Coned anti-scalp rollers.
- (3) 7-gauge steel reinforcement rings at spindle mounting area on 52,” 60″ & 72.”
- High-strength polymer belt covers.
- 10-gauge steel top.
- 7-gauge steel side skirt.
- Heavy-duty trim side wear guard.
- 18,500 fpm blade tip speed.
- Patented flow-control baffles.
- No-maintenance, sealed ball bearings.
- Flexible discharge chute reduces impact damage of trees and other obstacles.

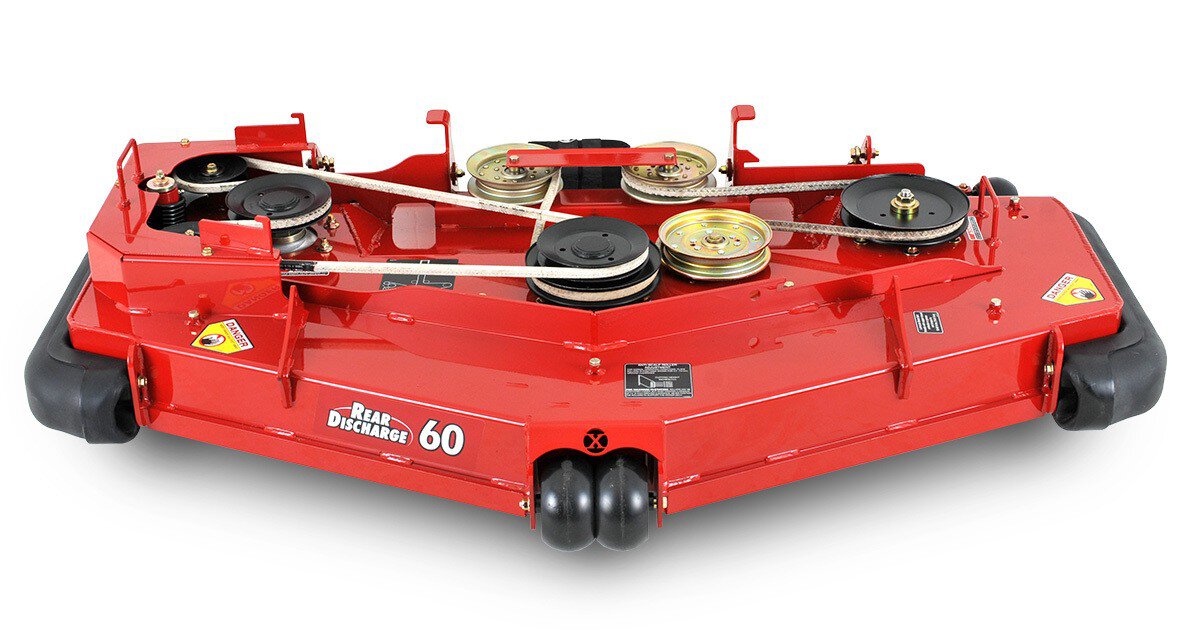

UltraCut Rear Discharge Cutting System
- 5.5″ deck depth. 4-point suspension. Full-floating.
- 7-gauge high-strength low alloy deck construction.
- High-strength polymer belt covers.
- Reinforced anti-scalp rollers.
- Compression molded UHMW side bumper protects deck and follows ground contours.
- Lazer Z DS-Series: No maintenance spindles are sealed and non-greasable. 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver and 30mm (1.18″) diameter spindle shaft.
- Lazer Z S-Series: No maintenance spindles are sealed and non-greasable. 7.75″ diameter cutter housing with 25mm (.98″) diameter spindle shaft and splined blade driver.
- 18,500 fpm blade tip speed.
- Patented spherical bearing design on idler arms requires only annual greasing.
- No-maintenance, sealed ball bearings.
Learn more about the advantages Exmark cutting systems can give you at Exmark.com/Exmark-Advantage/.
