Stand-On Spreader Sprayer

There's never been anything like it.
Exmark's stand-on spreader sprayer is the industry’s most advanced, most innovative design. This versatile, easy-to-operate, easy-to-maneuver machine offers our most advanced lean-to-steer technology and outstanding stability. The sprayer system includes a 20-gallon tank and an agitation system; the seed hopper can hold up to 175 lbs. Adjustable spread and spray widths let you operate in a variety of terrains and conditions.

Available Models

Features


Exmark Product Thumbnail

Innovative Lean-to-Steer Technology

This advanced solution allows the operator to control all motion with one hand.

Exmark Product Thumbnail

Agitation System

You can mix chemicals in the tank and keep them in suspension, thanks to our innovative agitation system.

Exmark Product Thumbnail

Intuitive Controls

Everything you need at your fingertips, allowing you to make easy adjustments and maintain total control.

Exmark Product Thumbnail

Spacious Hopper

Hopper can hold 175 lbs. An extra 50 lb bag can also be placed in carrier on top of the tank.

Exmark Product Thumbnail

Operator Comfort

Stainless steel operator platform with isolation mounts for a more comfortable ride. Locks up or down for storage.

Model Specs


Specifications for model # SSS270CSB00000

Equipment
Front Tires 13 x 6.5-6
Rear Tires 18 x 7.5-8
Frame Stainless Steel
Width / Cutting Deck 35"
Power Components
Engine Type Subaru EX27
Displacement 265cc
Transmission Hydrostatic
Drive System Tuff Torq
Fuel Capacity 1.59 gal
Ground Speed 0–5.5 mph (8.8 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
Model Description Spreader-Sprayer S-Series EX27 Subaru Stand-on

*The gross horsepower of these gasoline engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers may be significantly lower.
**The gross horsepower of the 3TNV80FT was laboratory rated at 2600 rpm; the 3TNV88C was laboratory rated at 3000 rpm by the engine manufacturer in accordance with SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers may be significantly lower.

Dimensions
Length 67.5 in.
Width 35.5 in.
Height 51.5 in.
Curb Weight 500
Spreader and Spray System
Hopper Capacity 175 lbs. + 50 lbs. on spray tank; 12 VDC, 2 hp motor
Spread Width Adjustable from 4 ft up to 22 ft
Tank Capacity 20 gal
Pump Remco
Spray Rate Wide - 0.69 gpm at 30 psi, 0.80 gpm at 40 psi; Narrow - 0.35 gpm at 30 psi, 0.40 gpm at 40 psi
Spray Width Wide spray up to 11 ft wide; Narrow spray up to 5 ft wide

Accessories


Exmark Product Thumbnail

Cable Guard Assembly

Part# 126-5865

Protect your engine cables from foreign objects such as branches and shrubs while operating the machine.

Exmark Product Thumbnail

30 ft Hose and Tray

Part# 126-8155

Allows you to step away from the sprayer to spray in bedding areas, tiered landscapes and hard to reach areas. Kit comes with extended hose tray to protect the hose from foreign objects.

Exmark Product Thumbnail

Spray Wand TeeJet 22670

Part# 126-3944

Optional spray wand available to customize to your spray preference.

Exmark Product Models: Parts Only

Spray Nozzle (White)

Part# 116-9798

TeeJet Turbo FloodJet TF-VS4

Exmark Product Thumbnail

15 ft Hose Tray

Part# 126-6305

The 15ft hose tray can be added to your spreader-sprayer in order to protect the hose from foreign objects while spraying.

Exmark Product Models: Parts Only

Spray Nozzle (Blue)

Part# 126-7172

TeeJet Turbo FloodJet TF-VS5

Exmark Product Thumbnail

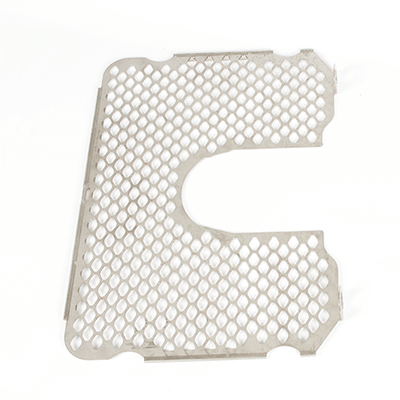

Hopper Screen (Large Hole)

Part# 126-3143

Optional hopper screen with large holes to customize your preference based on dry material application.

Exmark Product Models: Parts Only

Spray Nozzle (Gray)

Part# 126-7170

TeeJet Turbo FloodJet TF-VS3

Exmark Product Models: Parts Only

Spray Nozzle (Red)

Part# 126-2566

TeeJet Turbo FloodJet TF-VS2

Exmark Product Thumbnail

Spray Wand

Part# 126-6325

Optional spray wand available to customize to your spray preference.

Exmark Product Models: Parts Only

Spray Nozzle (Brown)

Part# 126-7171

TeeJet Turbo FloodJet TF-VS2.5

Exmark Product Thumbnail

Hopper Screen (Small Hole)

Part# 126-3242

Optional hopper screen with small holes to customize your preference based on dry material application.

Exmark Product Thumbnail

Spray Wand

Part# 126-8150

Optional spray wand available to customize to your spray preference.

Exmark Product Thumbnail

Anti-Siphon Assembly

Part# 126-5850

Allows you to fill the tank from potable water source and protects from chemicals being siphoned back into the source.

Exmark Product Thumbnail

Spray Wand

Part# 126-8160

Optional spray wand available to customize to your spray preference.

Exmark Product Thumbnail

Multi-Purpose Bag

Part# 126-6000

Allows you to carry up to two-and-a-half gallon hand-held pump sprayer to provide the ability to apply different spray application. Can also be easily adjusted for smaller uses or removed to fit through gates.

Warranty


We have you covered. We take great pride in the quality of our products and stand behind every single one. You can view, download, or print the warranty statement for your equipment here.
