Exmark Radius E-Series commercial-grade zero-turn riders provide the best of both worlds: The features lawn professionals need, like Series 3 (5” deep) UltraCut decks and maintenance-free spindle assemblies, while delivering value that makes this mower attractive to anyone with a lot of grass to mow. Cutting deck widths available: 44-, 48-, 52- and 60 inches.
Radius E-Series Features
Large Caster Tires
Radius models are equipped with large front caster tires. 13 x 6.5 pneumatic tires come standard on 48", 52", and 60" models and 13 x 5.0-6 on the 44" model.
Powered by Exmark Engine
Equipped with Exmark’s commercial-grade 24.5-horsepower 708cc V-Twin engine that features a dual barrel carburetor, cast iron cylinder liners and a quick oil drain hose raises the bar for productivity, durability and value. (Not available in California.)
UltraCut Deck Technology
Exmark’s exclusive UltraCut decks are featured on Radius models in a choice of 44- to 60-inch cut widths. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
Heavy Duty Unibody Frame
Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
Quick Adjustable Rollover Protection System (ROPS)
Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
Fuel Gauge Window
Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
Height of Cut Made Easy
The patented height of cut system is a user friendly tool developed for operators to quickly and accurately select the height of cut.
- Blade Spindles No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
- Drive Tires 22 x 8.5-12 K500
- Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
- Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
- Front Caster Tires 13 x 5.0-6, smooth tread, pneumatic. Bushings
- Parking Brake Lever-actuated pawl brake.
- Seat High back seat with foam padded seat cushion, armrests and integral safety switch
- Electrical 12-volt battery with 15-amp alternator.
- Standard Features Engine hour meter, cup holder, tow hitch and jack receiver
- UPC 193308000992
- Engine Brand Exmark
- Engine Model LC2P77F
- Engine Displacement 708
- Engine Series V-Twin
- Fuel System Carbureted
- Engine Speed 3,600 rpm
- Air Filter Standard Engine Manufacturer's air filter
- Fuel Type Gas Carbureted
- Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
- Fuel Indicator Translucent Visual
- Drive Hydro-Drive
- Drive Description Dual Hydro Gear ZT2800, hydrostatic transmission with relief valves and independent, replaceable filters.
- Speed Infinitely variable speed selection from 0–7.0 mph (12.9 kmph) forward, 0–X.0 mph (x.0 kmph) reverse.
- Carb Compliant No
- Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
- Safety Package Operator Presence Controls (OPC) ??? and drive system interlock, with safety interlock system indicators.
- ROPS 2-post foldable ROPS standard with seat belt and latch.
- PTO Engagement Electromagnetic 125-ft-lb clutch (Ogura)
- Drive Wheel Release Allows unit movement without engine running.
- Casters .375" thick caster yoke arms
- Engine Spec K4973
- Width / Cutting Deck 44"
- Deck Style Floating Deck
- Deck Style Description Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
- Deck Construction 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
- Blade Tip Speed Approximately 18,500 fpm.
- Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
- Blades 2 Blades at 22.25" Length
- Width 45.4 in (115.3)
- Length 81.7 in (207.5 cm)
- Height 69.7 inches (177.0 cm)
- Curb Weight 802
12-Volt Power Port
12-Volt Power Port
3-Bushel Bagger Adapter
Replaced by 135-5313. Adapter required for GC3602 3-Bushel Bagger.
Carry a 5-gallon bucket on your mower to pick up unwanted debris while mowing. Mount not included.
Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It’s constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
Seat Cover–Standard 18" Back
Protect your new seat or make your old one look new. Fabric coated for maximum water resistance and repellency. Cushioned for extra comfort. Elastic cord in bottom hem for custom fit. (Fits standard seat.)
Seat Cover– Suspension 20" Back
Protect your new seat or make your old one look new. Fabric coated for maximum water resistance and repellency. Cushioned for extra comfort. Elastic cord in bottom hem for custom fit. (Fits suspension seat.)
HD AIR CLEAR KIT
HD AIR CLEAR KIT
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Engine Maintenance Kit - Exmark V-Twin
Contains everything a do-it-yourselfer needs to keep their Exmark running like new. Includes oil, oil filter, fuel filter, air filter, spark plug and fuel treatment.
Extended Drive Lever Kit
Front Bucket Mount & 5-Gallon Bucket
Easily attach a 5-gallon bucket to your mower to pick up unwanted debris while mowing
Bucket Mount Kit
Easily attach a 5-gallon bucket to your mower to pick up unwanted debris while mowing. Bucket not included.
Hydro Maintenance Kit
Kit includes: 5 Bottles Exmark Premium Hydraulic Oil and 2 Hydro Filters
Light Kit - LED
Better and brighter than ever, this quick-install light kit keeps your productivity going into the night. Low profile, and impact-resistant, this ROPS mounted accessory emits powerful light without the use of significant amperage capacity.
Sun Shade (ROPS)
Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.
Support Flip Up Kit
Support Flip Up Kit
Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.)

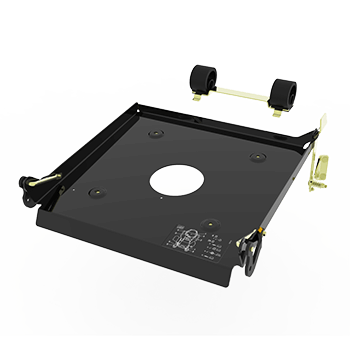

Tilt Frame & Seat ISO Mounts (44 Inch Requires #)
Tilt frame and ISO mounts for added suspension
Kit, Completing 44 - Powered
Ultra Vac Kit
Kit, Completing 44 UV
Ultra Vac Kit
2-Bag Collection System – Powered
2-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.
